Cleanroom Fans Single Inlet Centrifugal Fans With Medical Industry Fan 160mm
Single Inlet Centrifugal Fans Details
- Option: Also available with discharge flange
- Technical Features: Control input 0-10V/PWM, tach output
- Type of protection: IP44
- Insulation Class:B
- Bearing: Ball bearing
- Weight:4.4kg
Single Inlet Centrifugal Fans Parameters
| Name: | Single Inlet Centrifugal Fans | Type: | LE160C-230D3-1 |
| Rated Voltage: | 230V | Operation Volrage: | 176-264V |
| Application: | Industrial Cooling | Rated Current: | 1.0A |
| Power: | 142W | Rated Speed: | 2100RPM |
| Air Flow 1: | 620m³/h | Air Flow 2: | 369CFM |
| Air Pressure: | 81.2mmH2O | Noise Level: | 69dba |
Why choose us?
- We belongs to the factory, so price we can give is based on factory cost, not trading cost.
- We are sole International sales of the factory, we can help to control and protect the market of clients.
- We integrates different kinds of products for air management.
- We are independent of factory. This make us standing in the position of client instead of factories. It will solve your problem of communication with factory.
- We absorb new knowledge and business way Internationally. This make us be able to give more marketing suggestion and new cooperation ways.
Our range of small ,midium and large sized centrifugal fans are suitable for many areas . Include but limited to :
- Electronic cabinet cooling
- EC fan array
- Clean room modules
- Heat exchangers
- Air filtration
- Military HVAC
- Medical appliances
- Plastic extrusion
- Fume hoods
- Pharmaceutical equipment
- Semiconductor industry
FAQ
Are you a factory or trading company?
We are a factory which specialized in produce external rotor motor about 10 years. We accept OEM or ODM
How do I know which model I should choose
Please tell us the fans pressure and ofan and size of fans’ diameter you need. We will study and suggest you the right model.
Can we buy a sample for testing?
Sure, you are welcomed to buy a sample before mass order.
EC Fan Introduction
EC(Electronically Commutation) motors, as built-in DC inverter driver three phase AC external rotor permanent magnet synchronous motors, its efficiency and low noise is considered to be ultimate fan energy technologies.
Core Technology Of EC Fan Controller
1. Sensorless vector control software
2. High-performance power electronic circuits
3. Security and reliability design(Standards, Certification)
4. Embedded design

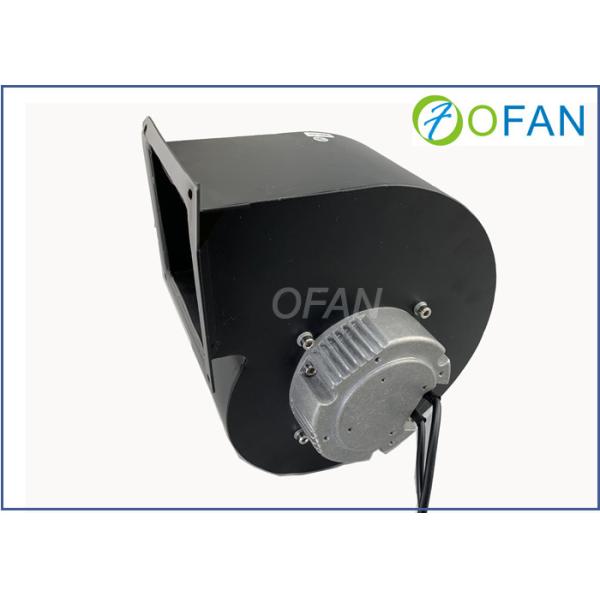

Single Inlet Centrifugal Fans Pictures
Product Tags:
|
|
Medical Industry 160mm IP44 Single Inlet Centrifugal Fans Images
|
